型號 Model |
排出口徑 Drain-out aperture mm |
流量 Flow m³/h |
揚程 Head m |
轉(zhuǎn)速 Speed r/min |
功率 Power kW |
效率 Efficiency % |
重量 Weight Kg |
|
400WQ1700-22-160 |
φ400 |
1700 |
22 |
980 |
160 |
82 |
2880 |
|
400WQ1500-26-160 |
φ400 |
1500 |
26 |
980 |
160 |
83.5 |
2880 |
|
400WQ2000-22-200 |
φ400 |
2000 |
22 |
980 |
200 |
82 |
3150 |
|
400WQ1700-30-200 |
φ400 |
1700 |
30 |
980 |
200 |
83.5 |
3150 |
|
400WQ1800-32-250 |
φ400 |
1800 |
32 |
740 |
250 |
82 |
3250 |
|
400WQ2000-30-280 |
φ400 |
2000 |
30 |
740 |
280 |
82.5 |
3250 |
說明：JYWQ型自動攪勻潛水排污泵性能參數(shù)等同WQ型潛水式排污泵(見上表)。外形尺寸見下頁。
Note:
the parameters of model JYWQ aut-ostirring submersible sewage pump are identical to those of model WQ submersible sewage
pump (see the table above), see the next page for the out-form dimensions.
|

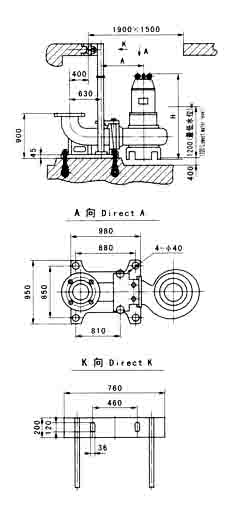

自動耦合式安裝
Auto-coupling
installation
|

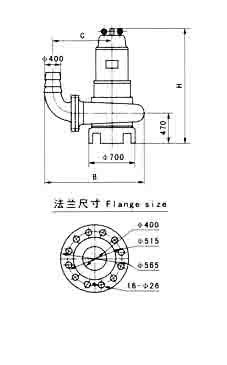

軟管移動式安裝
Hose
movable installation
|
注：JYWQ型自動攪勻排污泵其安裝尺寸參照WQ型潛水排污泵進行。
Note：refer to model WQ
submersible sewage pump for the installation dimensions of model JYWQ
auto-stirring sewage pump．
|
|
型號Model |
H |
A |
B |
C |
|
400WQ1700-22-160 |
2650 |
840 |
1480 |
1040 |
|
400WQ1500-26-160 |
2650 |
840 |
1480 |
1040 |
|
400WQ2000-22-200 |
2650 |
840 |
1480 |
1040 |
|
400WQ1700-30-200 |
2650 |
840 |
1480 |
1040 |
|
400WQ1800-32-250 |
2690 |
900 |
1560 |
1100 |
|
400WQ2000-30-280 |
2690 |
900 |
1560 |
1100 |
